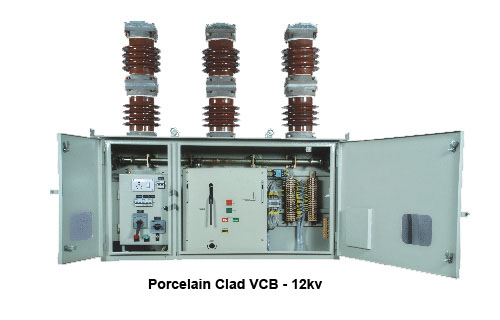

Outdoor Porcelain Clad 12kv

......................................................

Outdoor Porcelain Clad 36kv

......................................................

12kv Retrofitting VCB

Salient Features of 12kv Vacuum Circuit Breaker

	Type tested & Conforms to IEC 62271-100,IS 13118
	Simple,compact & easy to operate
	Arc interruption in vacuum.
	Robust porecelain bushing for higher insulation levels.
	IP55 cabinet housing for spring charged mechanism & Controls.
	Galvanised Steel Support structure,extendable for CT / PT.
	Local / Remote Control & Relay Panel.
	A simple motor charged spring operating mechanism noted for its high performance reliability.
	Superior mechanical Endure limit Maintenance required only after 10,000 operations.
	A Versatile mechanism capable of operating Vacuum interrupters of any type .Hence dependence of single source of Vacuum interrupters eliminated.
	Trip free mechanism suitable for repeated auto re-closing duty.
	Spring charging time of less 10 seconds.

VCB Technical Data

Type	ASOVB - 12
Rated Voltage	KV	12
No. of Poles	No	3
No. of breaker per Pole	No	1
Frequency	Hz	50 / 60
Rated Current	Amp	630 / 1250 / 1600
Short circuit current	KA	13.1 / 20 / 62.5
Making Current	KAp	33 / 50 / 62.5
Duration of short time current	Sec.	3
Insulation Level Impulse Power Frequency rms	KVP KV	75 / 95 28
Creepage distance	mm	450
Contact Travel	mm	7(+1,-1)
Opening Time	Cycles	Less than 2 cycles
Interrupting Time	Cycles	Less than 3 cycles
Closing time	Cycles	Less than 3 cycles
Duty Cycle	Cycles	0-0.3 sec.-Co-3 min - CO
Reclosing time	m sec	300
Type of Mechanism		Motor / Manual Spring Charge Type
Coil Voltage*		24 / 30 / 48 / 110 / 220 V DC
Trip / closed coil power		350 Watts
Motor operating voltage		230 V AC / DC
Auxiliary Switch		Up to 8 NO + 8 NC
Degree of Protection		IP 55
Applicable Standard		IEC 62271 - 100, IS 13118
* Different voltage as per customer requirement

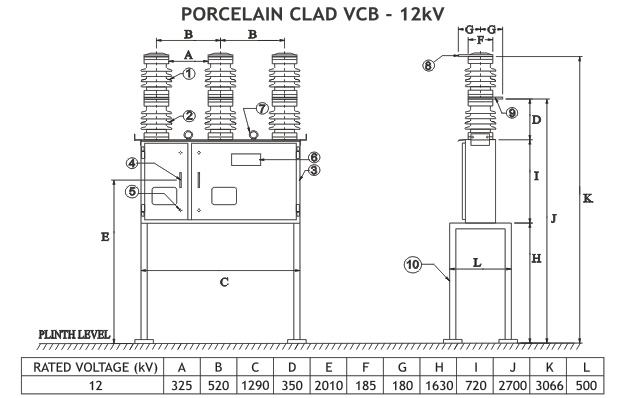

GENERAL ARRANGEMENT

Sr. No.	Description
1	Interrupter Porecelain Bushing
2	Support Porcelain Bushing
3	Housing For Machanism
4	Handle
5	Door Lock
6	Name Plate
7	Lifting Hook
8	Upper Terminal Pad Bare Aluminium
9	Lower Terminal Pad Bare Aluminium
10	Support Structure
