( Consist of Drwaout VCB, Circuit Breaker Compartment, Epoxy Bushing with Main Contact , Shutter Lifting Arrangement & All Interlocks ) |
|
| |
Cost Effective & Time Saving Solution For Switchgear Panel Manufacturers
|
|
Fully type tested at CPRI. |
|
Ex - Stock Availability. |
|
Compact moduler design suitable for 600 mm width of panel. |
|
Simple in construction ,easy to operate. |
|
Suitable for close door application i.e. when the front door is closed all manual operations like ON,OFF,Manual Spring Charging ,rack -in & rack-out can be carried out . |
|
Robust & internal arc proof design. |
|
| |
Salient Features Of Vaccum Circuit Breaker Modules |
|
IP 4x degree of protection externally. |
|
Foolproof mechanical interlock to prevent rack-in and rack-out of closed breaker. |
| |
Explosion flaps on top of modules for exhaust purpose. |
|
Live parts are covered by automatic shutter when the breaker is racked out. |
|
The breaker cannot be moved from test to service position unless the breaker compartment door is closed. |
|
The breaker cannot be moved from test to service position or vice versa with breaker in closed condition . |
|
The Breaker cannot be closed in-between test & service position. |
|
The Breaker compartment door cannot be opened when the breaker is in service positiion or in between service & test positions. |
|
| |

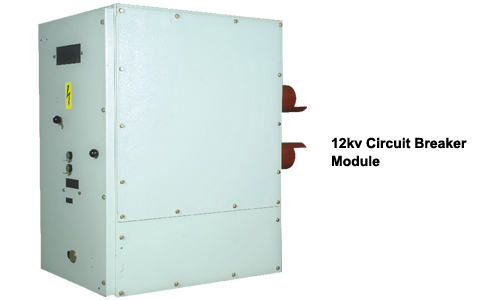

| Salient Features of 12kv Vaccum Circuit Breaker |
|
A Compact ,Light ,Weight Construction ,optimized to give minimum weight to KA ratio. |
|
Superior mechanical endurance limit maintenance required only after 10,000 operations. |
|
|
A unique "U" shaped insulation barries housing for the Vaccum interrupters ,imparting maximum mechanical strength against electrodynamic forces & provides most effective phase to phase and phase to earth segregation. |
|
A screw type racking arrangement for easy insertion & withdrawl of the Circuit Breaker renders perfect contact pressure ,independend of operator's Force. |
|
A simple motor charged spring operating mechanism noted for its high performance reliability. |
|
A versatile mechanism capable of operating Vacccum Interrupters of any type.Hence,dependence on single source of Vaccum interrupters eliminated. |
|
Trip free mechanism suitable for repeated auto re-closing duty. |
|
Spring charging time of less than 10 seconds. |
|
Totally enclosed construction for spring charging motor. |
|
Easy visual check of contact erosion. |
|
| |
 |
Operating Mechanism |
| Type |
Motor & Manually charged |
| Charging Time of motorised mechanism |
Less than 10 Sec. |
| Coil voltage* |
24 /30 / 48 / 110 / 220 V DC |
| Trip / closed coil power |
350 Watts |
| Motor Operating voltage |
230 V AC / DC |
| Power required by charging motor |
80 Watts |
| Type of closing latch |
Designed to close & latch |
| Auxiliary switch |
Up to 8 NO + 8 NC |
| Mechanical Operating Counter |
5 digit non resetting type |
* Different voltage as per customer requirement. |
|
|
| |

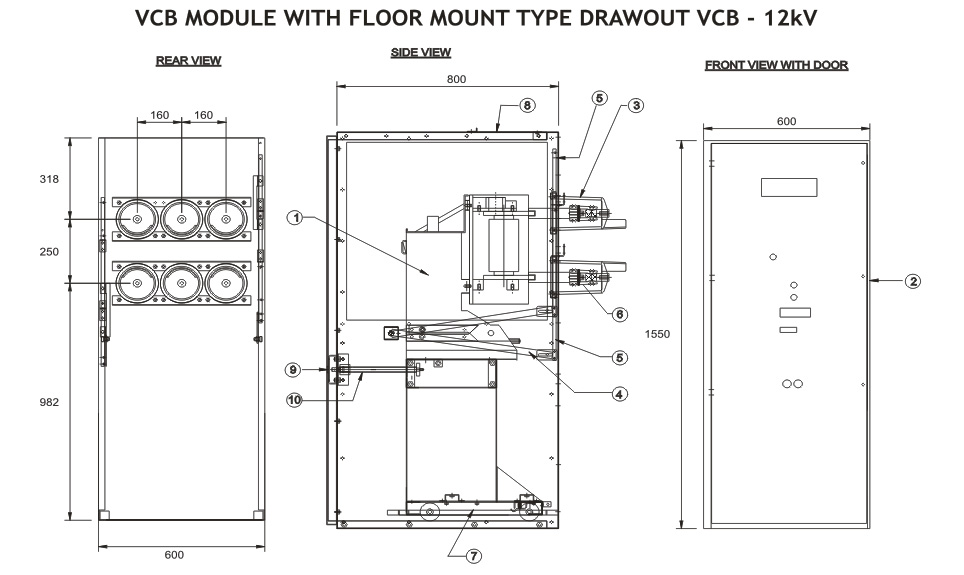

GENERAL ARRANGEMENT |
|
| |
| |
Sr. No. |
Description |
1 |
Draw Out VCB |
2 |
Circuit Breaker Compartment |
3 |
Epoxy Bushing with Main Contact |
4 |
Shutter Lifting Arrangement |
5 |
Movable Shutter |
|
Sr. No. |
Description |
6 |
Primary Dis-connector / Finger Jaw |
7 |
Earth Bar |
8 |
Pressure Release Flaps |
9 |
Drive Box |
10 |
Rack-in / Rack-out lead screw |
|
|
| |
|
| |
| |
VCB Technical Data |
| |
Type |
ASIVB - 12 |
| Operating Method |
|
Manual / Motor Spring Charge Type |
| Rated Voltage |
KV |
12 |
| No. of Poles |
Nos |
3 |
| Frequency |
Hz |
50 / 60 |
| Rated Current |
Amp |
630 / 1250 / 2000 |
| Short circuit Current |
KA |
13.1 / 20 /25 |
| Making Current |
KAP |
33 / 50 / 62.5 |
| Duration of short time current |
Sec. |
3 |
| Insulation Level Impulse Power Frequency rms |
KVp
KV |
75 / 95
28 |
| Contact travel |
mm |
7 (+1, -1) |
| Opening Time |
Cycles |
Less than 2 cycles |
| Interrupting Time |
Cycles |
Less than 3 cycles |
| Closing Time |
Cycles |
Less than 3 cycles |
| Duty cycle |
Cycles |
0-0.3 sec. -CO-3 min-CO |
| Applicable Standard |
|
IEC 62271-100, IS 13118 |
|
|
|
| |
|
| |
| |
